Description
1. Product Overview
The DT-A86 is a versatile, compact, and rugged tester designed for CCTV professionals. It brings together every tool needed for testing, commissioning, fault diagnosis, and maintenance of surveillance equipment in a single handheld unit.
Beyond video and network testing, the A86 adds a high-precision digital multimeter and an optical power meter, so electrical and fiber measurements no longer require carrying separate instruments. Its data-logging and waveform-capture capabilities help technicians pinpoint equipment and line faults, including hard-to-catch intermittent issues, and significantly improve on-site troubleshooting efficiency.
Powered by an embedded Linux system, the A86 delivers smooth display performance and responsive operation for intensive daily use on job sites.

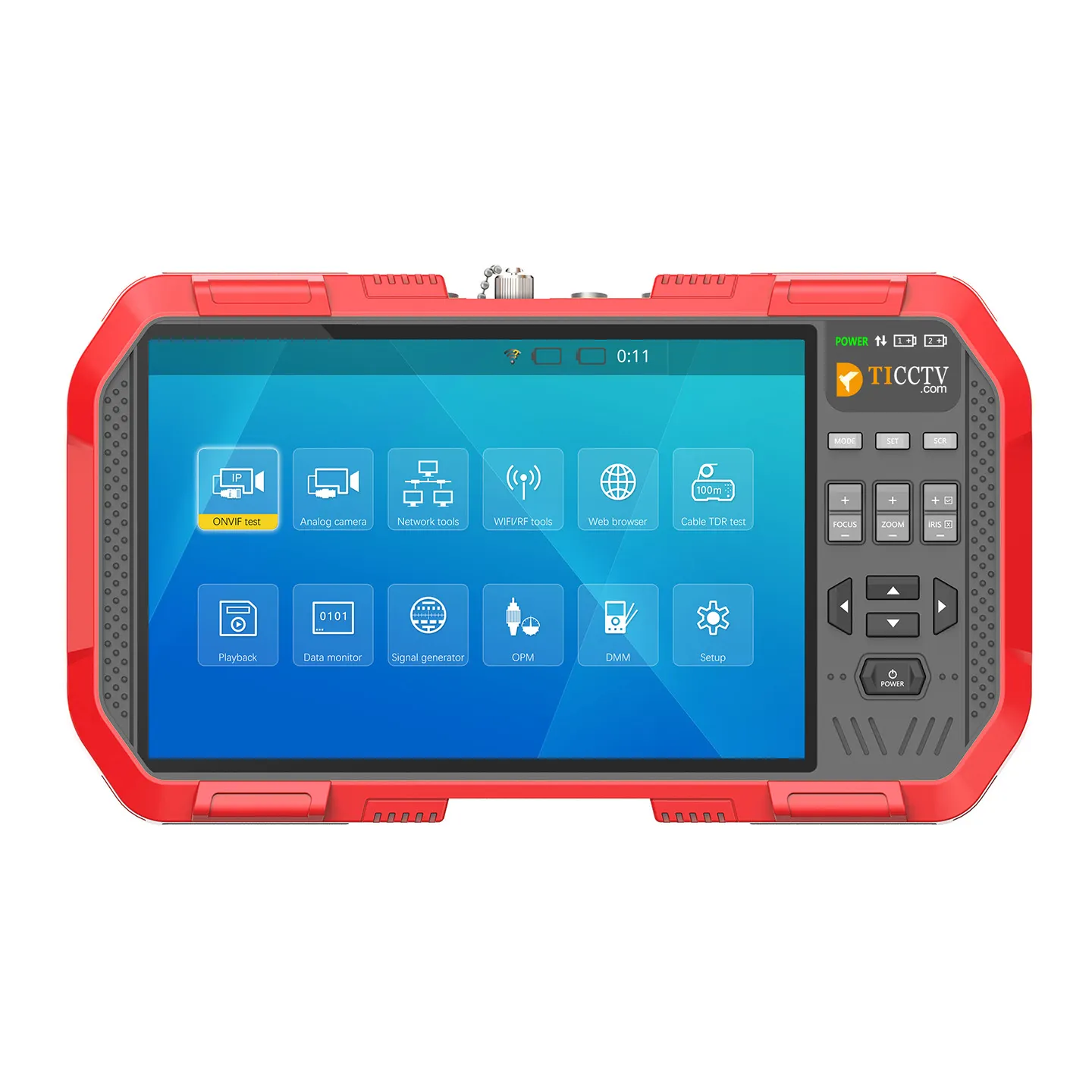

2. Product Images
3. Key Features
- 7-inch fully laminated capacitive touchscreen with 1920 × 1200 resolution and adjustable backlight
- Compatible with analog (PAL/NTSC), HD coaxial (HD-CVI 3.0, AHD 3.0, HD-TVI 3.0), and IP cameras
- High ONVIF compatibility with H.264/H.265 decoding and 4K support at 30 fps
- PTZ control over both coaxial and RS485, covering more than 30 protocols
- Photo capture, video recording, and 8-level digital zoom for project inspection and acceptance
- Built-in high-precision digital multimeter for AC/DC voltage, current, resistance, capacitance, diode, and continuity
- Built-in optical power meter (InGaAs) for fiber testing across all mainstream wavelengths
- Network-cable TDR testing for cable length, pair status, and attenuation
- 2.4 GHz and 5 GHz Wi-Fi and RF spectrum analysis, including interference detection
- Wi-Fi hotspot creation, wireless IP-camera testing, and bridging between Wi-Fi and the LAN port
- Comprehensive network tools, including DHCP, traffic, packet-loss, and link-quality testing
- PoE input/output (802.3at) and 12V/2A power output
- Dual 1000M Gigabit Ethernet ports for precise network analysis
- Dual foldable, dual-band omnidirectional antennas for improved wireless reception
- Embedded Linux system for smooth performance and responsive operation
4. Detailed Technical Specifications
| IP Camera Testing | |
|---|---|
| IPC Protocols | ONVIF, RTSP, RTP |
| Ethernet Test | 10M/100M/1G Ethernet link detection, Ethernet loop detection, DHCP client and server, Ethernet traffic detection, and data-link quality detection |
| IPC Test | Device discovery, real-time video, camera configuration, PTZ testing, and ONVIF device discovery across the network segment |
| IPC Image Test | H.265/H.264 decoding, support for 4K at 30 fps, and 8-level local zoom preview |
| Network Interface | Dual RJ45 Gigabit Ethernet ports supporting serial pass-through connection |
| Wi-Fi and Spectrum Testing | |
| Wi-Fi Test | Supports 2.4 GHz and 5 GHz bands, Wi-Fi connection, Wi-Fi list viewing, Wi-Fi information detection, latency testing, and packet-loss testing |
| Spectrum Test | Supports 2.4 GHz and 5 GHz band scanning, signal detection, and spatial noise or interference detection |
| Signal Monitoring | Rapid monitoring of 2.4 GHz and 5 GHz signal changes with a refresh rate of 1–10 Hz |
| Antenna Type | Dual external foldable, dual-band omnidirectional dipole antennas |
| PoE Testing | |
| PD Test | The tester receives power; supports IEEE 802.3at and power-supply voltage detection |
| PSE Test | The tester supplies power; supports IEEE 802.3at, up to 25.5W, with actual PD power detection |
| Analog and HD Coaxial Video Testing | |
| Video Formats | NTSC, PAL, HD-CVI 3.0, AHD 3.0, and HD-TVI 3.0 |
| Video Signal | 1 Vp-p |
| Video Input / Output | Video IN BNC input and Video OUT BNC output |
| Digital Zoom | 8-level zoom |
| Video Signal Generator | Outputs PAL/NTSC test signals and CVI, AHD, and TVI test signals at 720P/1080P |
| HDMI Signal Testing | |
| HDMI Input | Receives 720P signals at 25/30/50/60 fps and 1080P signals at 25/30/50/60 fps for display |
| HDMI Output | Outputs test patterns in 720P at 50/60 fps and 1080P at 25/30/50/60 fps |
| Power and Audio | |
| 12V Power Output | 12V/2A output; round connector, 4 mm outer diameter and 1.6 mm center pin |
| Audio Test | 1 × audio-signal input |
| Coaxial PTZ Control | |
| Communication Interface | Video IN BNC interface |
| Communication Protocols | CVI protocol (Dahua coaxial), AHD protocol (Pelco-C), and TVI protocol (Hikvision) |
| RS485 PTZ Control | |
| Communication Interface | RS485 |
| Communication Protocols | More than 30 protocols, including Pelco-D/P, Samsung, Panasonic, Lilin, and Yaan |
| Baud Rates | 150, 300, 600, 1,200, 2,400, 4,800, 9,600, and 19,200 bps |
| Digital Multimeter | |
| DC Voltage (DCV) | Range: 2/20/200/600 V · Reading: ±19999 · Resolution: 0.1 mV · Accuracy: ±0.1%+8 |
| AC Voltage (True RMS) | Range: 20/200/600 V · Reading: ±1999 · Resolution: 1 mV · Accuracy: ±1.2%+3 |
| DC Current | Range: 20/200/2000 mA · Reading: ±19999 · Resolution: 1 µA · Accuracy: ±0.1%+8 |
| AC Current (True RMS) | Range: 20/200/2000 mA · Reading: ±1999 · Resolution: 1 µA · Accuracy: ±1.2%+3 |
| Resistance | Range: 2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ · Reading: 0–19999 · Resolution: 0.1 Ω · Accuracy: ±0.1%+8 |
| Capacitance | Range: 2 nF–20 mF (8 ranges) · Reading: 0–1999 · Resolution: 1 pF · Accuracy: ±4%+5 |
| Diode | Forward voltage drop, range 2 V · Reading: 0–19999 · Resolution: 0.1 mV · Accuracy: ±0.1%+20 |
| Continuity | Range: 2 kΩ · Reading: 0–19999 · Resolution: 0.1 Ω · Accuracy: ±0.1%+20 |
| Optical Power Meter | |
| Detector Type | InGaAs |
| Calibration Wavelengths | 1625, 1550, 1480, 1310, 1300, and 850 nm |
| Power Range | -70 to +10 dBm |
| Measurement Accuracy | < ±0.3 dB (-10 dBm at 22°C); < ±0.5 dB (full scale at 22°C) |
| Display Resolution | Linear: 0.1% · Logarithmic: 0.01 dBm |
| Connector | FC/PC, removable |
| LED Lighting | |
| Front LEDs | 2 × 35 lm wide-angle LEDs |
| TDR Cable Testing | |
| Cable Test | Tests the length and status of all four network-cable pairs. Resolution: 0.1 m. Accuracy: 1 m. Maximum measurable length: approximately 130–200 m, depending on cable type |
| Power Supply and Battery | |
| Charger | 12V/1.5A power adapter with 5.5 mm round plug |
| Battery | Two battery compartments. Each accepts one dedicated 18.5 Wh lithium battery pack. Combined operating time is approximately 10 hours, and the tester can also operate with a single battery |
| Charging | 12V/1.5A charging, up to 18W. Charging time: approximately 3–4 hours |
| Power Saving | Configurable automatic standby and real-time battery-level display |
| System Parameters | |
| Display | 7.0-inch TFT display, 1920 × 1200 resolution, 16.7 million colors, adjustable backlight brightness |
| Operating Method | Power button, 13-key main-control keypad, and fully laminated capacitive multi-touchscreen |
| Language | Chinese/English interface, user selectable |
| Automatic Standby | Disabled or configurable from 5 to 60 minutes |
| Keypad Tone | Enabled or disabled |
| Working Environment and Dimensions | |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 30%–90% |
| Dimensions | 236.5 × 133.4 × 45.4 mm |
5. After-Sales Service and Warranty
- Product Warranty: A 1-year manufacturer’s warranty is provided for the main unit of the DT-A86 tester.
- Technical Support: Available Monday to Friday, from 9:00 AM to 6:00 PM. Professional support is available by email and WhatsApp. A complete English user manual and installation and operation video tutorials are also provided.
- Software Updates: Free online system and software updates are available to improve functionality and maintain compatibility with new surveillance equipment.
