Description
1. Product Overview
Surveillance cameras today are installed across a large share of commercial premises, private homes, and public spaces. Professional installers and maintenance technicians need a portable, versatile tool to quickly adjust cameras, detect signals, and run PTZ control tests on site.
The V70 Combined HD Tester is an all-in-one professional device for security applications. It supports every widely used analog and high-definition signal format — HD-CVI 3.0, AHD 3.0, and HD-TVI 3.0 — with full coaxial and RS485 PTZ control, a multilingual system including French, durable lithium batteries, and a built-in LED torch. This compact unit combines video testing, audio detection, power output, and equipment diagnostics into a single tool for security engineers, installation teams, and maintenance staff. It significantly improves on-site efficiency and reduces the cost of troubleshooting surveillance equipment.

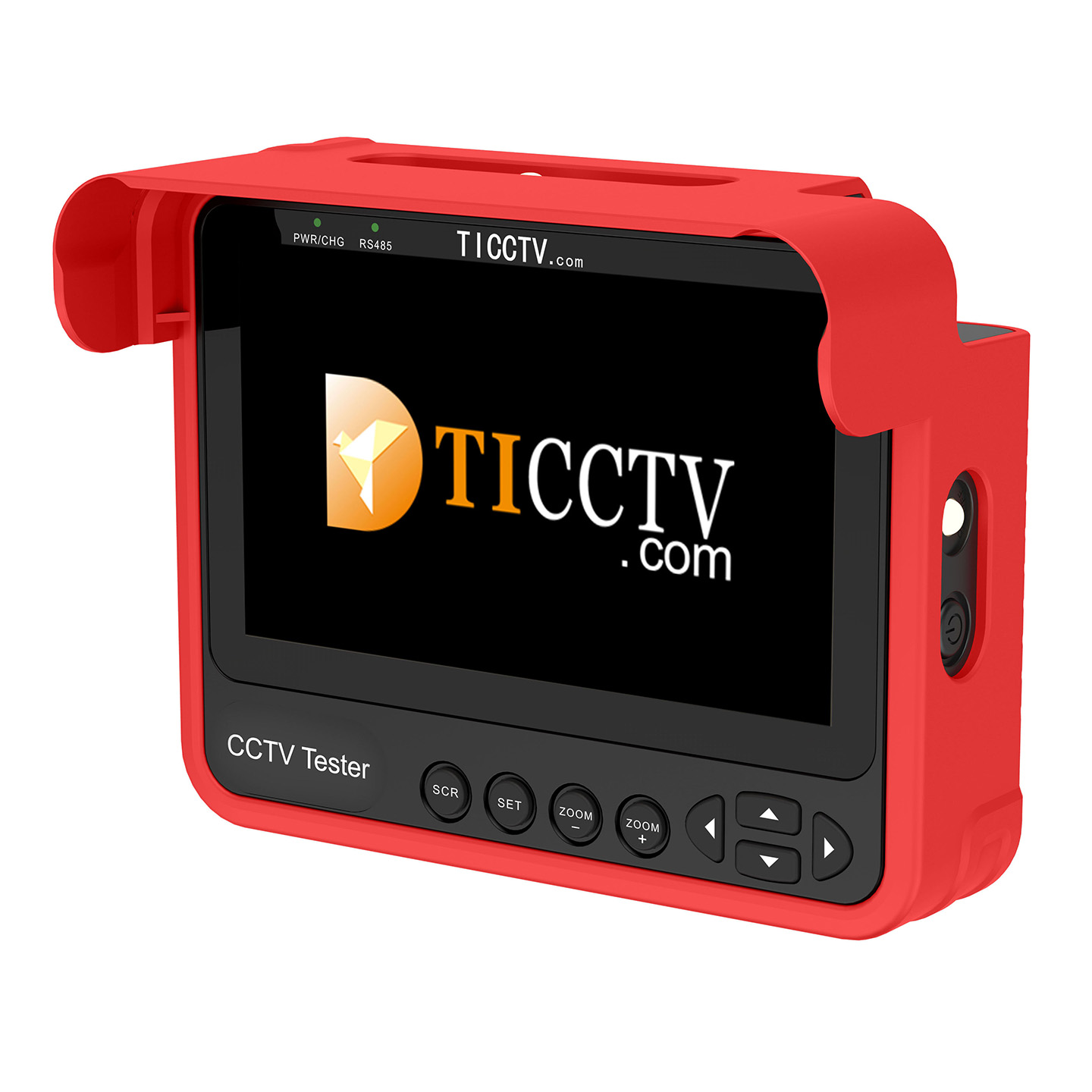

2. Product Images
3. Detailed Technical Specifications
| Analog & HD Video Testing | |
|---|---|
| Supported Signal Formats | NTSC, PAL, HD-CVI 3.0, AHD 3.0, HD-TVI 3.0 |
| Standard Signal Level | 1 Vpp |
| Audio Test | Supports incoming audio-signal detection |
| Power | |
| 12V Power Output | 12V/1A; round connector (4 mm outer diameter, 1.6 mm center pin) |
| Charging | Micro USB, 5V/1A |
| Battery | Two 18650 lithium batteries, 2000 mAh each; approximately 8 hours of operation |
| Coaxial PTZ Control | |
| Interface | BNC video input |
| Compatible Protocols | CVI (Dahua Coax), AHD (Pelco-C), TVI (Hikvision), SD-UTC |
| RS485 PTZ Control | |
| Interface | Standard RS485 communication port |
| Compatible Protocols | Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, and more than 30 professional protocols |
| Adjustable Baud Rates | 150, 300, 600, 1200, 2400, 4800, 9600, 19200 bps |
| Hardware & System | |
| Display | 4.3-inch TFT display, 480 × 272 resolution, 262K colors, adjustable brightness |
| Control Buttons | 1 power button, 8 main-control keys, 3 LED-light switches |
| System Languages | Chinese, English, French, Spanish, Polish, Russian, Italian (user selectable) |
| Keypad Tone | On / Off |
| Working Environment and Dimensions | |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 30%–90% |
| Dimensions | 120 × 30 × 95 mm |
| Weight | 0.3 kg (device with batteries) |
4. After-Sales Service and Warranty
- Warranty: A standard warranty is provided for this camera tester. In the event of a manufacturing defect under normal use, we provide free repair or replacement in accordance with applicable French regulations.
- Technical Support: Our professional support team offers multilingual technical assistance (including French) to help you master every function of the product and resolve installation and operation issues.
- Shipping: Fast delivery throughout France and Europe. All products are carefully packaged to prevent damage in transit.
