Description
1. Product Overview
The DT-T73 is a high-performance combination tester built for CCTV professionals. It integrates IP camera (IPC) testing, analog / HD coaxial testing (CVI/AHD/TVI), Ethernet testing, PoE testing, TDR cable testing, PTZ camera testing, audio testing, and a 4½-digit digital multimeter in a compact, portable device.
Compatible with ONVIF, RTSP, and RTP as well as the HD-CVI 3.0, AHD 3.0, and HD-TVI 3.0 standards, it decodes H.264/H.265 streams and supports 4K resolution at 30 fps. With a 4-inch TFT display and a replaceable lithium-polymer battery, it is well suited to field work — simplifying fault diagnosis and significantly improving technician efficiency.

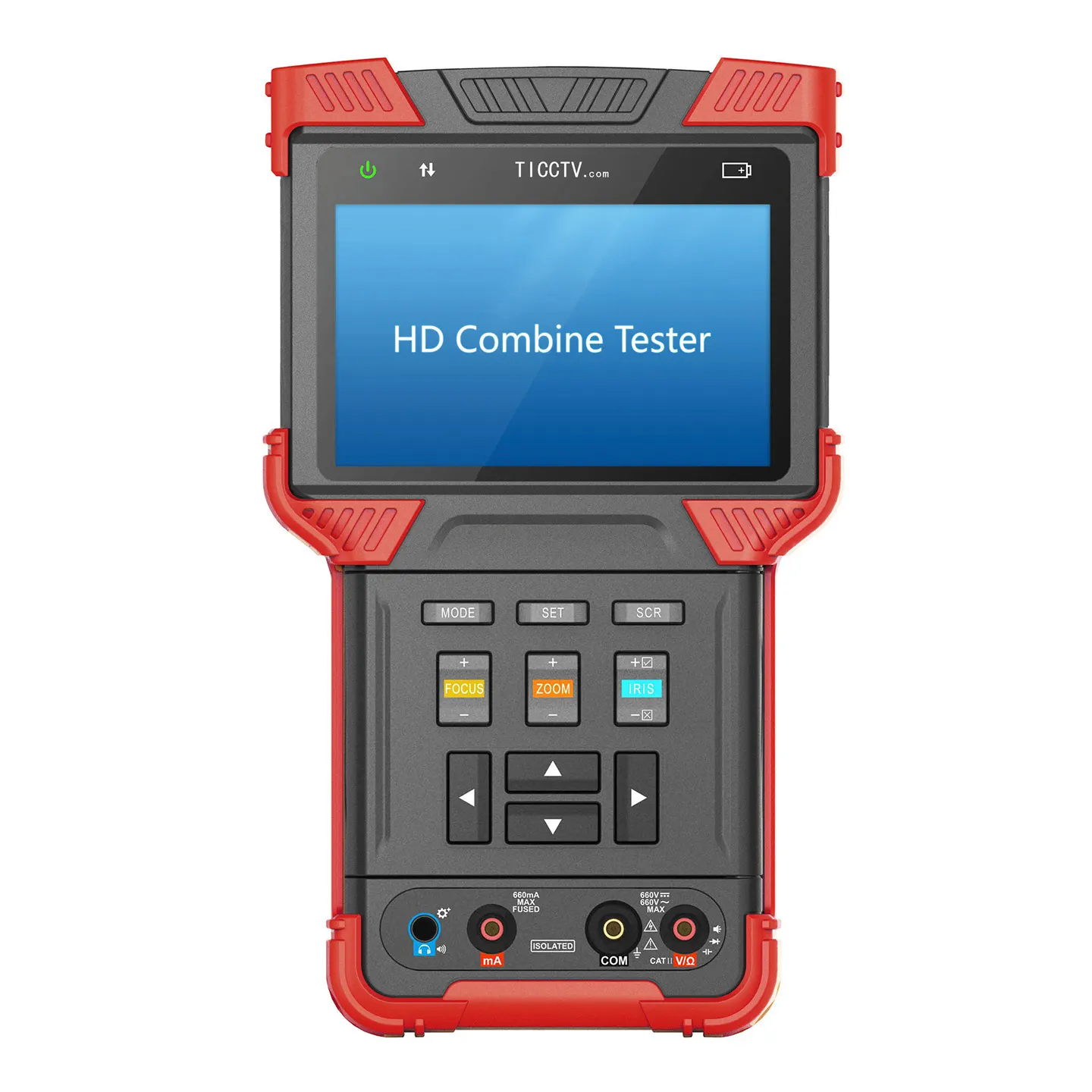

2. Product Images
3. Detailed Technical Specifications
| General | |
|---|---|
| Model | T73 |
| Interfaces | |
| Network Interface | Dual RJ45 10/100/1000M ports; switch mode supported |
| Function Interfaces | Dual BNC connectors (video in/out), RS485 communication, audio input, USB, and reset button |
| IP Camera Testing | |
| Protocols | ONVIF, RTSP, RTP |
| Ethernet Test | 10/100/1000M Ethernet link testing; link-speed testing; Ethernet loop detection; DHCP client and server; Ethernet traffic monitoring; link-quality indicator |
| IP Configuration | Static IP / DHCP client / DHCP server |
| IPC Settings | Manual IP configuration, DHCP client, DHCP server, multi-address DHCP detection, and automatic DHCP-status switching |
| IPC Test | Discovery and cross-subnet discovery, camera list, quick screenshot indication, real-time video, camera network configuration, PTZ test, audio test, full-screen video, 8-level digital zoom, screenshot saving, video recording (original stream), UDP/TCP switching, packet-loss indicator, and camera profile configuration |
| IPC Image Test | H.265/H.264 encoding, 4K support at 30 fps |
| Physical Port | Dual RJ45 1 Gbps Ethernet ports |
| PoE Testing | |
| PD Test | The tester receives power. 802.3at; supply-voltage detection |
| PSE Test | The tester measures output power. 802.3at; up to 25.5W, with actual PD power detection |
| Hikvision Activation | Automatic detection |
| Analog SD & HD Testing | |
| HD Signal Formats | Automatic adaptation of SD NTSC/PAL, HD-CVI, HD-TVI, AHD, and HD video signals |
| Signal Level | 1 Vpp |
| Video Resolution | D1, 720P, 1080P |
| Camera Test | Real-time video, PTZ control, audio test, full-screen preview, 8-level digital zoom, snapshot recording, video recording (H.264), and video resolution / frame-rate indicator |
| HD OSD | Camera OSD menu adjustment |
| 12V Power Output | |
| Output Power | 12V/2A output; round connector, 4 mm outer diameter and 1.6 mm center pin |
| Audio Testing | |
| Audio Test | 1 × audio-signal input |
| PTZ Control | |
| Communication Protocols | Hikvision coaxial, PELCO-C coaxial, Hikvision, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan, and more than 30 protocols |
| Baud Rates | 150, 300, 600, 1200, 2400, 4800, 9600, and 19200 bps |
| RJ45 TDR Cable Testing | |
| RJ45 Cable Test | RJ45 cable testing from 0 to 200 m: open circuit, short circuit, broken wire. Resolution: 1 m |
| Device | |
| Display | 4-inch TFT display, 800 × RGB × 480 (WVGA), 16.7 million colors, adjustable backlight level |
| Internal Storage | 8 GB flash memory |
| LED Torch | Two 35 lm LEDs; can be switched on individually even when the device is off |
| Operation | Power button, 12-key main-control keypad, and 45-key swivel QWERTY keyboard |
| Language | Chinese, English, French, Spanish, German, Turkish, Russian, Czech, Hebrew, Romanian, and Serbian, user selectable |
| Keypad Tone | On / Off |
| Software Upgrade | Online upgrade |
| Power | |
| Power Input | PoE switch or PoE injector |
| PoE Injector | AC input 100–230V 50–60Hz, output 48V/15W |
| Battery | Dedicated user-replaceable lithium-polymer battery, 22.2 Wh capacity |
| Power Output | PoE (802.3af, 802.3at) and 12V/2A output |
| Battery Runtime | Charging in 3–4 hours; up to 10 hours of operation |
| Other | |
| Operating Temperature | -10°C to +55°C |
| Operating Humidity | 30%–90% |
| Dimensions | 190 × 113 × 37 mm |
| Weight | 0.5 kg (device with battery) / 1.6 kg (gross weight) |
Digital Multimeter Specifications
Range, resolution, and accuracy (accuracy tested at 25°C ±5°C). Please refer to the manual for other electrical specifications.
| Function | Range and Other Specifications | Reading Rate (ps) | Counts | Min. Resolution | Accuracy |
|---|---|---|---|---|---|
| DC Voltage | 2 V, 20 V, 200 V, 600 V | 5 | ±19999 | 0.1 mV | ±0.1%+8 |
| AC Voltage (True RMS) | 2 V, 20 V, 200 V, 600 V | 2 | ±1999 | 1 mV | ±1.2%+3 |
| DC Current | 20 mA, 200 mA, 2 A | 5 | ±19999 | 1 µA | ±0.1%+8 |
| AC Current (True RMS) | 20 mA, 200 mA, 2 A | 2 | ±1999 | 10 µA | ±1.2%+3 |
| Resistance | 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ | 5 | ±19999 | 0.1 Ω | ±0.1%+8 |
| Capacitance | 2 nF, 20 nF, 200 nF, 2 µF, 20 µF, 200 µF, 2 mF, 20 mF, 100 mF | 0.2–5 | ±1999 | 1 pF | ±4%+5 |
| Diode Forward Voltage | 2 V | 5 | ±19999 | 0.1 mV | ±0.1%+20 |
| Continuity | 2 kΩ | 5 | ±19999 | 0.1 Ω | ±0.1%+20 |
